濱松 ORCA2 Digital CCD camera C11090-22B
| 型號 | C11090-22B | 品牌 | 濱松 |
| 類別 | 其他 | 顏色 | 其他 |
| 適用波長范圍 | 其他 | 分辨率 | 其他 |
| 傳輸接口 | 其他 | 幀率/行頻 | 其他 |
| 應用 | 其他 |

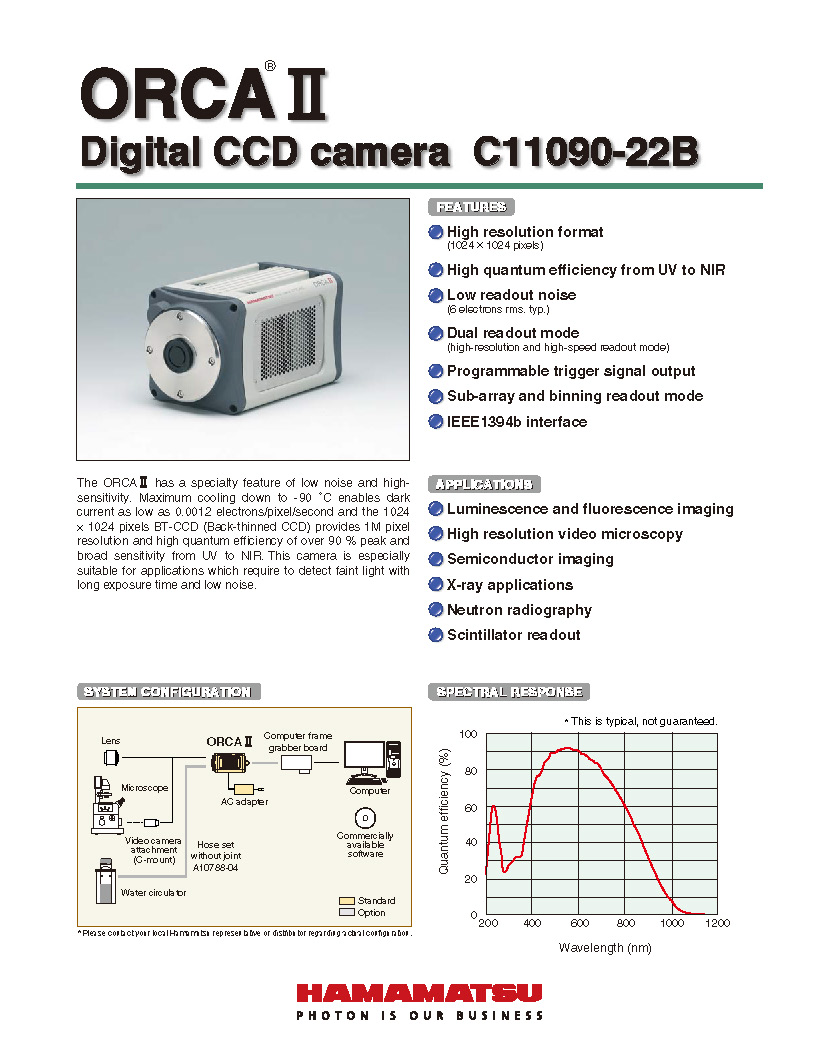

The ORCA2 has a specialty feature of low noise and highsensitivity.
Maximum cooling down to -90 °C enables dark
current as low as 0.0012 electrons/pixel/second and the 1024
× 1024 pixels BT-CCD (Back-thinned CCD) provides 1M pixel
resolution and high quantum efficiency of over 90 % peak and
broad sensitivity from UV to NIR. This camera is especially
suitable for applications which require to detect faint light with
long exposure time and low noise.
Maximum cooling down to -90 °C enables dark
current as low as 0.0012 electrons/pixel/second and the 1024
× 1024 pixels BT-CCD (Back-thinned CCD) provides 1M pixel
resolution and high quantum efficiency of over 90 % peak and
broad sensitivity from UV to NIR. This camera is especially
suitable for applications which require to detect faint light with
long exposure time and low noise.
